Industrial Transformers & Inductors
NWL has over 30 years of experience in the design and manufacture of Mil-Spec transformers and inductors. Power capabilities range from watts to megawatts for airborne and shipboard applications. Transformers and inductors from NWL can meet ITARs and DFARs requirements.
Overview
Industrial Transformers & Inductors
NWL has designed and manufactured transformers and inductors for specialized industrial applications for over 70 years. Capabilities include:
- Air, fluid, and epoxy insulation systems
- Water cooled – direct and indirect, hybrid air-water cooled
- True vacuum – pressure varnish systems
- Product certifications – CSA, UL, Atex, IEC
- Partial discharge testing
- Advanced winding capabilities
- Fluid filled – mineral oil, silicone, FR3
- Air cooled or water cooled capacitor options
- Oil filled or dry resin capacitor technology
- Mil-Spec tolerances achieved
Quick Reference
- Transformers
- Dry type to 10,000kVA

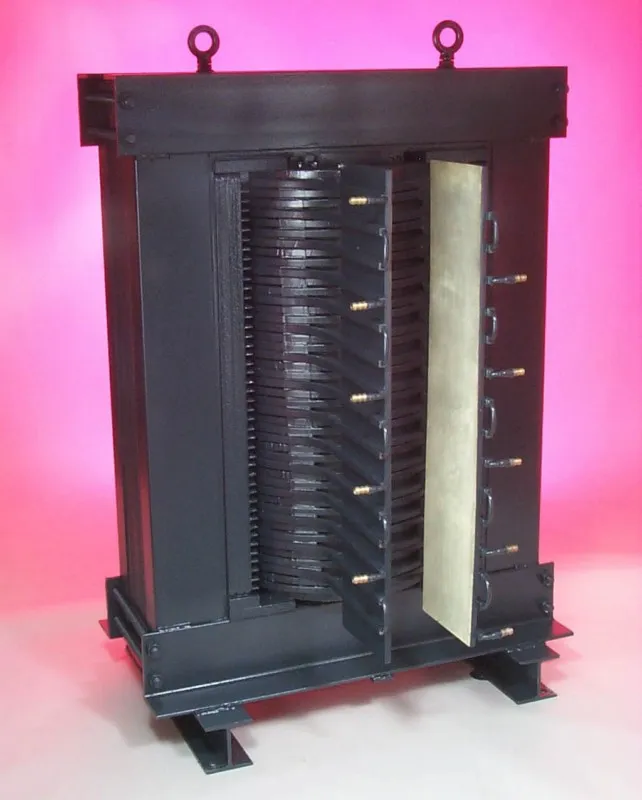

- Water cooled to 25,000kVA
- Output voltages to 300kV
- Input voltages to 34.5kV class

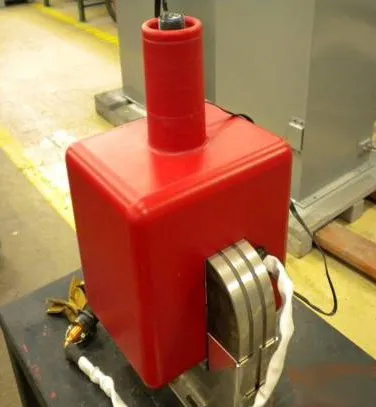

- Isolation voltages to 250kV oil, 100kV epoxy, 30kV dry
- Frequencies to 200kHz
- Inductors
- Air and iron core
- Single and three phase up to 5,000kVAR with input voltages up to 15kV class
- Air or water cooled
- Fluid filled – oil, silicone, FR3
- Capacitors
- Voltage: AC 100 to 25,000 Volts, DC 100 to 200,000 Volts
- Capacitance: 1 nano-farad to 50,000 microfarads
- Current: DC to 5000 Amps rms up to 12000 KVAR
- Physical Size: 0.25 cubic inches to 6 cubic feet
Specifications
Transformers
Capabilities
- Dry type to 10,000kVA
- Water cooled to 25,000kVA
- Output voltages to 300kV
- Input voltages to 34.5kV class
- Isolation voltages to 250kV oil, 100kV epoxy, 30kV dry
- Frequencies to 200kHz
Applications
- Step-up
- Inter-phase
- Multi-pulse, including rectifier duty
- Isolation
- Filament
Inductors
For high power inductors, NWL’s unique air gap construction techniques result in less audible noise and lower losses. Designs for Common Mode Inductors use nanocrystalline cores to provide state of the art low loss performance. NWL has extensive experience with large AC duty inductors which see high harmonic content.
Capabilities
- Air and iron core
- Single and three phase up to 5,000kVAR with input voltages up to 15kV class
- Air or water cooled
- Fluid filled – oil, silicone, FR3
Applications
- Commutation
- DC filter
- Harmonic filter
- Current limit
Resources
Certifications
NWL is an AS9100:2016 and ISO 9001:2015 certified manufacturer of transformers and power supplies for industrial applications and also provides a CE Declaration of Conformity for its PowerPlus switch mode power supply (SMPS).
Related services
Related services
NWL provides service and support for electrostatic precipitators (ESP), power supplies, transformers and inductors.
If the NWL equipment was supplied or acquired as part of a system from another firm, please contact that company for any service needs. If they are unable to satisfy the service requirements, then contact NWL
Startup and Commissioning
NWL’s expertise goes well beyond the production phase. Our fully trained personnel are ready to help you get your new equipment connected, properly set up, and running efficiently. Our service technicians and engineers have traveled across the globe, working with customers from various backgrounds and experiencing every possible environment.
Maintenance and Repair
NWL products are available for purchase as spare or replacement parts. We offer tailor-made maintenance packages to ensure that the equipment operates efficiently, which includes yearly inspections, preventive maintenance and repair services from our technical and engineering experts. Additionally, upgrade or retrofit options to address part obsolescence, enhance system performance, design, and software, and support long-term cost savings are available to all our customers.
On-Call and Onsite Assistance
For on-call and onsite assistance, NWL’s dedicated team is there to take your call. We work around the clock, ensuring that you have the help you need whenever you need it. NWL offers global, remote support anytime, regardless of your time zone.
Custom Engineering Solutions
We offer customized engineered products and services to meet your reliability requirements. It starts with a good understanding of the product need and the application environment and solid collaboration between the parties involved.
