Military Transformers & Inductors
NWL has over 30 years of experience in the design and manufacture of Mil-Spec transformers and inductors. Power capabilities range from watts to megawatts for airborne and shipboard applications. Transformers and inductors from NWL can meet ITARs and DFARs requirements.
Overview
Military Transformers & Inductors

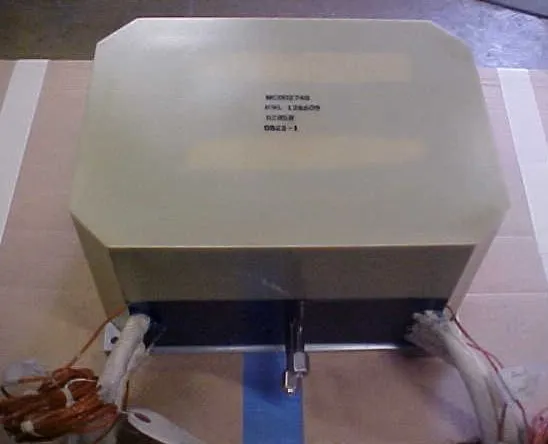

For high power inductors, NWL’s unique air gap construction techniques result in less audible noise and lower losses. Designs for Common Mode Inductors use nanocrystalline cores to provide state of the art low loss performance.

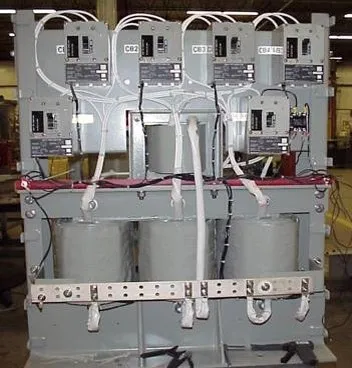

- Transformers
- Dry type to 10,000kVA
- Water cooled to 25,000kVA
- Output voltages to 300kV
- Input voltages to 34.5kV class
- Isolation voltages to 250kV oil, 100kV epoxy, 30kV dry
- Frequencies to 200kHz

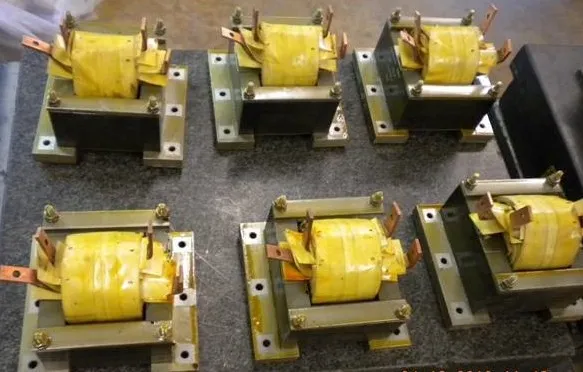

- Inductors
- Air and iron core
- Single and three phase up to 5,000kVAR with input voltages up to 15kV class
- Air or water cooled
- Fluid filled – oil, silicone, FR3
Specifications
NWL has supplied transformers and inductors to the following military programs:
| Program | Application |
| AESA | Radar Systems |
| AEGIS | Radar Power Supply |
| AMDR | Air Missile Defense Radar |
| Cobra Judy | 2.8 MVA Radar Power Supply |
| DDG 1000 | MK110 Gun Loader |
| EMALS | Electrco-Magnetic Launch |
| ERDPS | Power Supply |
| ESM Energy | Storage Modules (DDG-51) |
| F16 Sabre | Radar Power Supply |
| FFX | Hybrid Electric Drive |
| IFTP | Shipboard Power System |
| Magnetic Bearing | For Propeller Shafts |
| PCM 1-4 | Power Control |
| Rail Gun | Pulsed Power |
| RDPS | Power Supply |
| Sea Wolf | DC Power Supply |
| Wedgetail | Radar Power Supply |
