PowerCube™ Replacement for Standard Puck Style SCR Assemblies
The NWL PowerCube™ is a direct replacement for obsolete silicon controlled rectifier (SCR) circuits.
Overview
PowerCube™ Replacement for Standard Puck Style SCR Assemblies
The NWL PowerCube™ is a direct replacement for obsolete silicon controlled rectifier (SCR) circuits. The PowerCube employs a solid state thyristor for improved performance and greater reliability. This new design offers enhanced safety as the heat sinks are not energized and a more compact footprint, which allows it to be retrofit in place of most SCR puck and heat sink locations.
The PowerCube™ features include:
- Complete module, so there’s no assembly required, installs in minutes
- Built in snubber circuit
- Available in three current ratings: 120, 250, and 450 amps
- Options include fuse and/or trigger board
Specifications
PowerCube™ Part Numbers
| Description | 120 Amp | 250 Amp | 450 Amp |
|---|---|---|---|

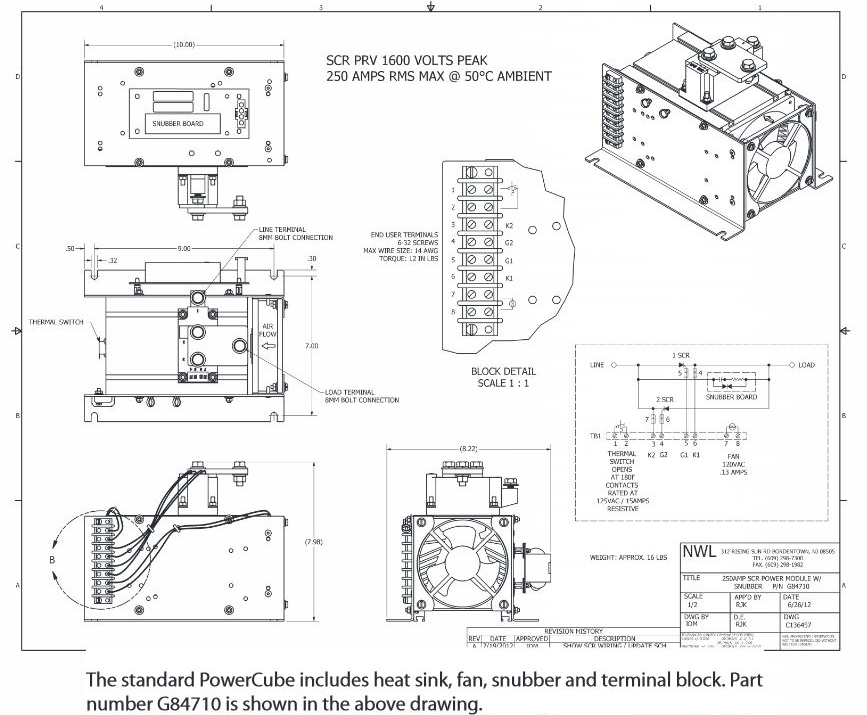

| Standard version | G84705 | G84710 | G84715 |
| Standard with fuse | G84706 | G84711 | G84716 |
| Standard with fuse and trigger board | G84707 | G84712 | G84717 |
Resources
Technical Information
Certifications
NWL is an AS9100:2016 and ISO 9001:2015 certified manufacturer of transformers and power supplies for industrial applications and also provides a CE Declaration of Conformity for its PowerPlus switch mode power supply (SMPS).
